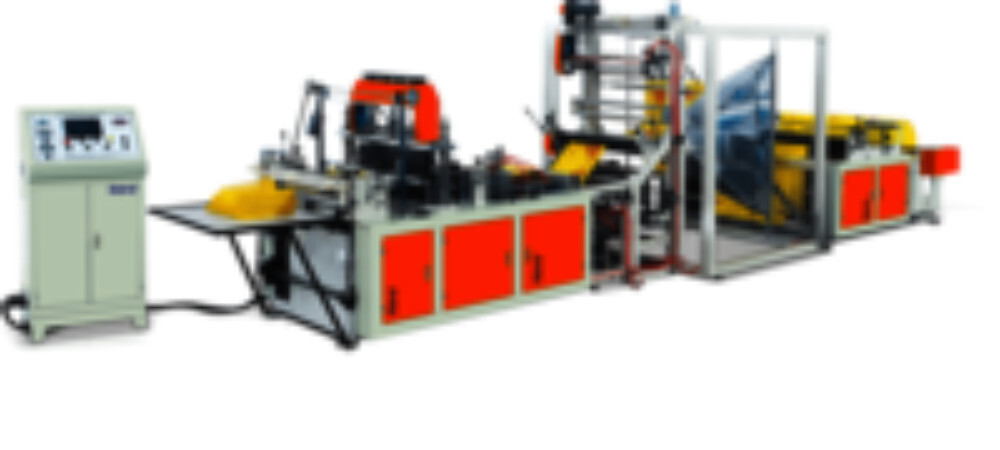

Automatic paper bag making machine

Name: Automatic paper bag making machine
Brand: FAIR DEAL ENGINEERS
Price: 8000000 INR
Availability: InStock

Price 8000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic paper bag making machine Specification

Product Type
Automatic Paper Bag Making Machine

General Use
Manufacturing paper bags for grocery, shopping, food packaging and retail use

Efficiency
High-speed continuous operation, up to 230 bags/min

Weight (kg)
Approx. 2000 kg

Automatic Grade
Automatic

Drive Type
Electric, Servo motor-controlled

Bag Type
Square bottom paper bags, V-bottom paper bags

Computerized
Yes

Photoelectric Correction
Yes

Film Length Counter
Yes

Bag Length
180-450 mm (adjustable)

Power
8-12 kW

Voltage
380 V, 3 Phase, 50 Hz

Material
Kraft paper, Coated paper, Laminated paper

Dimension (L*W*H)
5300 mm x 2100 mm x 2100 mm

Feature
Touch screen control, Auto counting, Alarm system, Precise cutting and folding, Low-noise operation

Color
Industrial Blue/Grey

Noise Level
70 dB

Glue System
Automatic Hot Melt/Cold Glue applicator

Min. Bag Length
180 mm

Air Compressor Requirement
0.12 m3/min, 0.6 MPa

Max. Roll Width
900 mm

Setup Time
Approx. 60 minutes

Production Speed
Up to 230 bags/min

Max. Bag Length
450 mm

Control System
PLC controlled with diagnostic support

Optional Attachment
Inline printing, Handle attachment, Window cutting unit

Paper Thickness Range
45-140 gsm

Bag Gusset Size
20-120 mm

Bag Width
70-350 mm (adjustable)

Operator Required
1

Touch Screen Interface
7 inch HD display

Bag Collection
Auto stacking and counting

About Automatic paper bag making machine

Experience remarkable efficiency and flexibility with our Automatic Paper Bag Making Machine, famed for its customizable settings and affordable, high-speed production. Suitable for kraft, coated, and laminated paper, it crafts trendy square or V-bottom bags in widths from 70-350 mm and lengths from 180-450 mm. This best-in-class unit features a 7-inch HD touch screen, PLC diagnostics, automatic glue options, and inline printing attachments. With continuous operation speeds up to 230 bags per minute and low noise, it's a favored choice for grocery, retail, or food packaging industries across India.

Innovative Features and Industrial Advantages

Our Automatic Paper Bag Making Machine is packed with trending technologies such as servo motor control, photoelectric correction, and an advanced glue application system. Remarked for precise cutting and folding, low-noise work at only 70 dB, and intuitive touchscreen operation, it stands out in the market. The machine is perfect for supermarkets, food outlets, retail chains, and shopping centers looking for a trusted, swift paper bag production solution-delivering continuous, operator-friendly performance and low maintenance downtime.

Packaging Details, Sample Policy, and Payment Terms

Machines are securely crated to prevent transit damage, with dispatching typically within 4-6 weeks of order confirmation. Stock is ready for key models and can be allotted upon payment. Sample test runs are available at the manufacturing site, allowing clients to estimate real-world performance. Flexible payment options include advance booking percentages and balance on shipment. Dedicated support is provided before and after delivery to facilitate seamless startup and operation for every client.

FAQ's of Automatic paper bag making machine:

Q: How does the customizable size range benefit users?

A: The adjustable bag width (70-350 mm), gusset (20-120 mm), and length (180-450 mm) allow customers to meet diverse packaging needs for groceries, retail, or food products, making the machine ideal for multi-purpose operations.

Q: What types of paper bags can be produced?

A: This machine efficiently manufactures both square-bottom and V-bottom paper bags from kraft, coated, or laminated paper, supporting varied industrial and retail packaging requirements.

Q: What is the process for machine setup and operation?

A: Setup takes about 60 minutes with a single operator needed. The intuitive 7-inch touch screen, automatic glue system, and auto counting streamline both installation and daily use, with PLC diagnostics offering proactive maintenance.

Q: Where can the paper bag making machine be installed?

A: Designed for manufacturers, suppliers, supermarkets, shopping centers, food chains, and retail outlets, this machine fits seamlessly into most industrial or commercial settings due to its compact yet robust build.

Q: What are the main advantages over traditional machines?

A: High-speed continuous production (up to 230 bags/min), precise electronic controls, customizable settings, automatic stacking, and low power consumption make this machine more efficient and cost-effective than conventional models.
